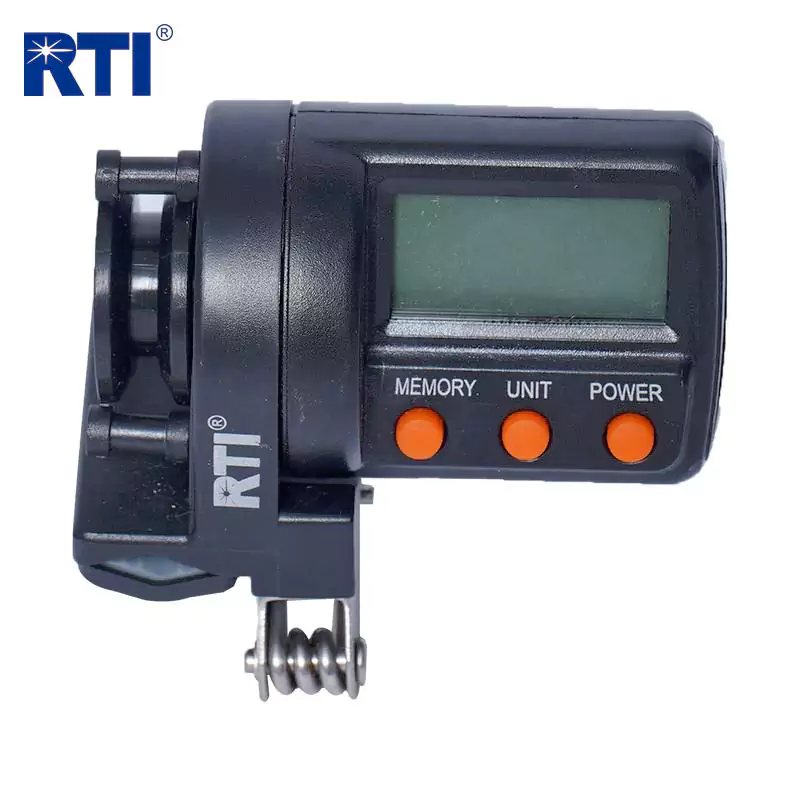

999m Digital Display Casting Rod Line Counter

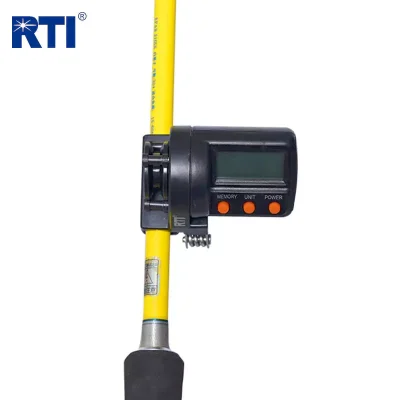

999m Digital Display Fishing Line Counter

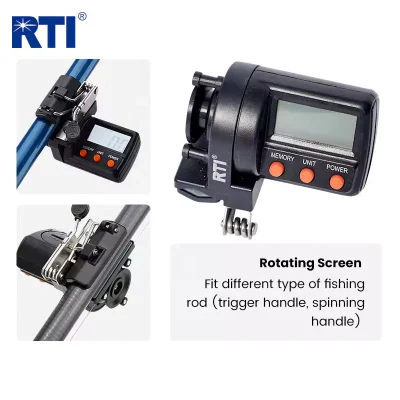

Rotating Screen of Casting Rod Line Counter

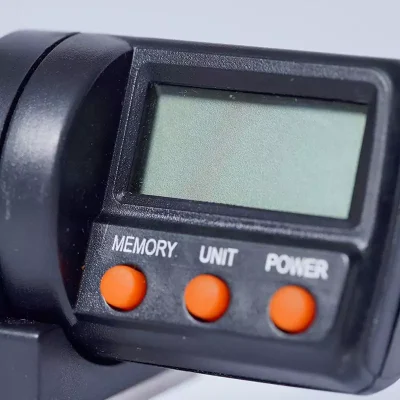

Digital Display of Casting Rod Line Counter

Efficient Side Reel Line Tracking of Casting Rod Line Counter

Casting Rod Line Counter Product Packaging

RTI Wholesale 999.9M Digital Display Fishing Casting Rod Line Counter For Spinning

Model NO：

RTI-LC05

50 – 499 pieces: $10.68

500 – 4999 pieces: $8.90

5000 – 49999 pieces: $8.63

>= 50000 pieces: $7.70

Material	ABS
Color	Black
Package	Clam
Usage	Measures the depth of your fishing location.

ABS Material.
Water Resistant.
Backlight.
Auto power off.

Start order request Contact supplier

Shipping Contact supplier to negotiate shipping details Enjoy On-time Dispatch Guarantee.

Payments Enjoy encrypted and secure payments.

Returns & Refunds Eligible for refunds within 30 days of receiving products.

A casting rod line counter measures how much line you let out or retrieve. Anglers use it to find and mark exact depths where fish feed. Counters show length in meters or feet and help repeat precise deployments in the same spot. They speed up setup and improve catch rates for both fresh and saltwater fishing.

RTI’s digital casting rod line counter is engineered for precise depth tracking across a wide range of fishing environments. The unit features a digital display with backlight for clear readings, supported by a 0–999.9 meter/feet measuring range. Its ABS housing offers reliable water resistance, while the stainless steel fixing clip and internal rubber mat ensure a secure, non-abrasive attachment to both casting and spinning rods.

The counter allows quick M/FT conversion, includes 10 memory positions for repeatable setups, and rotates 180 degrees to match different rod layouts. Designed with consistent performance in mind, it suits freshwater and saltwater applications and meets OEM customization requirements for professional fishing gear manufacturers and distributors.

Product Specifications

Product name	Line Counter
Model Number	RTI-LC05
Material	ABS
Size	Custom
Color	Black
Features	Count accurately
Package	Clam
Usage	Measures the depth of your fishing location.
MOQ	500pcs
Delivery Time	60 days
OEM	OEM Acceptalbe
Single Package Size	25X15X10 cm
Single Gross Weight	0.500 kg
Customization Options	Customized packaging (Min. order: 500 pieces)

10 Menory positions.
999m/ft capacity.
180 Rotatable, to fit both casting and spinning rods.
Water resistant.
Backlight.
Auto power off.

Digital Casting Rod Line Counter Product Structure

Clip:
Stainless steel fixing clip attaches securely to the rod. Inner rubber mat protects rod finish.
Power Button:
Single press to turn on/off. Auto power-off saves battery when idle.
Unit Button:
Switch between meters and feet. Hold 2 seconds for quick M/FT conversion.
Memory Button:
Stores and recalls up to 10 depth positions (0–9) for repeatable drops.
Side Reel:
Line wraps around the side reel for one full circuit to track length accurately.
Display & Backlight:
Clear digital display with backlight for low-light or night fishing.
Housing Material:
ABS plastic body with water-resistant design for use in wet conditions.

Digital Casting Rod Line Counter Product Details

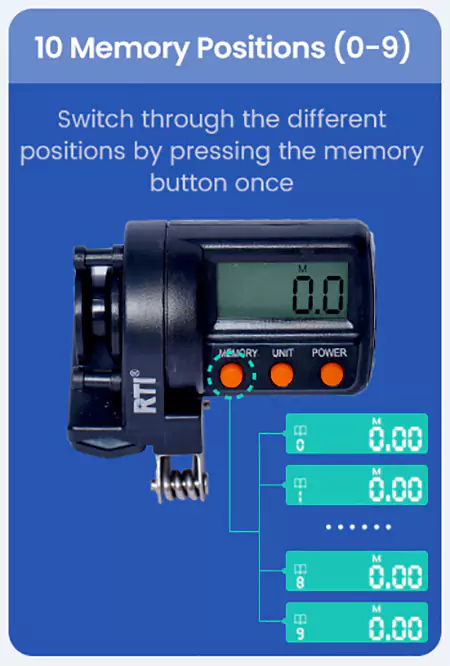

10 Memory Positions for Quick Depth Recall

The counter provides ten memory slots (0–9), allowing anglers to store and return to specific depths with a single press of the memory button. This improves efficiency when repeating productive setups during freshwater or saltwater fishing.

Fast M/FT Conversion for International Use

The dual-unit system lets users switch between meters and feet by holding the unit button for two seconds. This simplifies operation for teams working across different markets and measurement standards.

180° Rotating Design for Flexible Mounting

The head rotates 180 degrees, enabling the counter to align properly on both casting and spinning rods. This ensures stable positioning and consistent counting across different rod layouts.

Stainless Steel Clip for Adjustable Fit

A corrosion-resistant stainless steel fixing clip holds the counter firmly on the rod. Its adjustable opening lets users match various rod diameters without slipping or deformation.

Protective Rubber Mat Inside the Clip

The inner rubber mat creates a stable, non-slip contact surface. It prevents scratches and protects rod coatings during heavy use in boat, shore, or river environments.

Efficient Side Reel Line Tracking

The side reel reads the line when it wraps around for one complete circuit. This simple and reliable design provides consistent measurements without complicated calibration.

Digital Display Fishing Line Counter Manufacturing Process

1. ABS Injection Molding

High-impact ABS pellets are injection-molded at controlled temperatures (210–260°C) to form the upper and lower housings. Each mold cavity is monitored for shrinkage rate, wall thickness, and dimensional tolerance within ±0.1 mm to ensure a stable fit during assembly.

2. Electronic Module Production

The PCB for the digital counting system is produced using SMT placement. Key components include a microcontrol IC, unit-switch circuit, memory chip, and LED backlight driver. Each board undergoes a functional test for signal stability, battery efficiency, and display clarity.

3. Mechanical Reel Calibration

The side reel and counting wheel are assembled and calibrated to match a fixed circumference tolerance. This ensures that one complete circuit of fishing line generates accurate and repeatable length readings for both meter and foot modes.

4. Assembly of Functional Components

Technicians install the display module, buttons, memory switch, and conversion circuit into the molded housing. The stainless steel clip and internal rubber mat are fitted and aligned to maintain uniform pressure across different rod diameters without damaging the rod surface.

5. Water-Resistance Sealing

Sealing points around the housing, button gaps, and battery chamber are reinforced with precision-fit liners. Units undergo a water-spray resistance test simulating light rain and splash exposure to verify stability in real fishing environments.

6. Multi-Stage Performance Testing

Each assembled unit is tested for measurement accuracy (0–999.9m/ft range), backlight performance, memory switching, auto power-off response time, and 180° rotation smoothness. Stress tests simulate repeated clipping/unclipping cycles to check mechanical durability.

7. Final QC and Packaging Inspection

QC teams perform random sampling following AQL standards, checking appearance, structural integrity, and electronic reliability. Units that pass inspection are packed in standard clam packaging or prepared for OEM custom packaging based on project requirements.

Q1: What is the minimum order quantity (MOQ)?

A: Standard MOQ for OEM or custom packaging is 500 pieces.

Q2: Can you customize the packaging and add our logo?

A: Yes. We offer custom packaging and brand printing for orders at or above the MOQ.

Q3: What power source does the unit use and how long does it last?

A: The unit uses a small replaceable battery (installed at the factory). Battery life depends on use and backlight time; average field use lasts multiple fishing trips. (We can specify cells and life estimates for volume orders.)

Q4: Is the unit suitable for saltwater use?

A: Yes. The housing is water resistant and the stainless clip minimizes corrosion risk. Rinse with fresh water after heavy salt exposure.

Q5: How accurate is the length measurement?

A: The mechanical counter design records line length per reel circuit. Proper setup (one wrap around the side reel, correct clip placement) gives reliable repeatable readings for depth marking.

Q6: What lead time should I expect for bulk orders?

A: Typical lead time is 60 days for standard OEM production after order confirmation. Contact us to confirm current factory capacity and shipping options.

Q7: Do you provide sample units before full production?

A: Yes. We offer pre-production samples. Sample lead time and fee depend on custom printing or packaging requirements.

Q8: Can the product be rebranded as our private label?

A: Yes. We support private label, custom packaging, and factory direct OEM services for customers.
