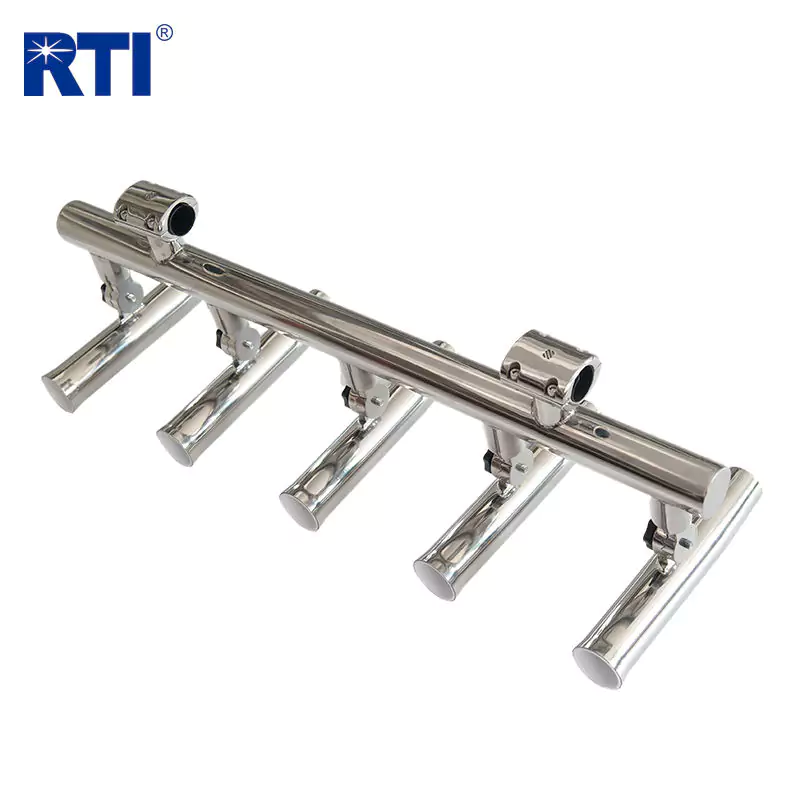

Stainless Steel Multi 5 Tube Fishing Rod Holder

Slotted Design of 5 Tube Fishing Rod Holder

Safety Stopper of 5 Tube Fishing Rod Holder

Adjustable for rails 32mm fishing rod stand with 5 tubes

304 316 stainless steel material 5 Tube Fishing Rod Holder

Wholesale 304 316 Stainless Steel Multi 5 Fishing Rod Holder for Boat

Model NO：

RTI-RH89

5 – 49 pieces: $116

50 – 999 pieces: $93.90

1000 – 2999 pieces: $92.90

>= 3000 pieces: $89

Material	304/316 Stainless Steel
Color	Black, White
Size	Length：830mm. Diameter：50.8mm Width：257mm Height：260mm
Weight	6.575KG

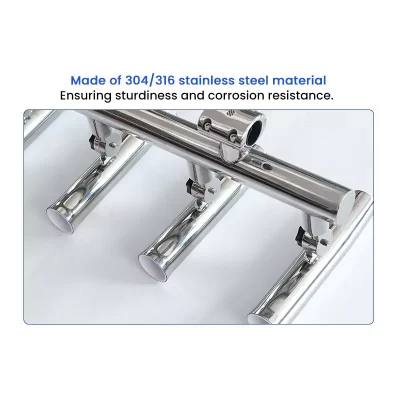

Made of 304/316 stainless steel and PP material, ensuring sturdiness and corrosion resistance.

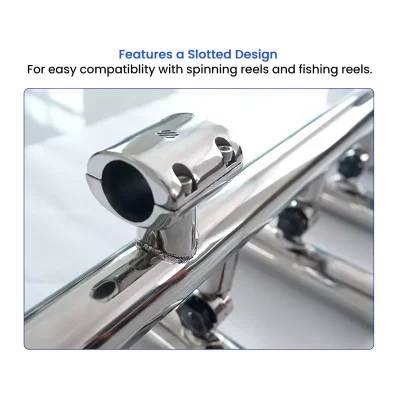

Features a slotted design for easy compatiblity with spinning reels and fishing reels.

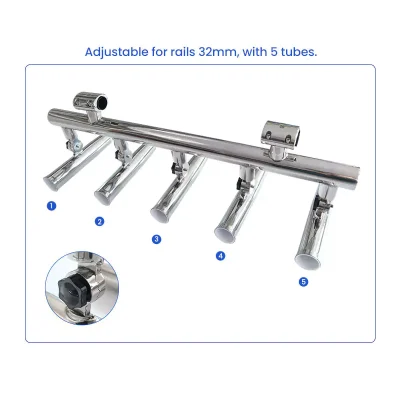

Adjustable for rails 32mm, with 5 tubes.

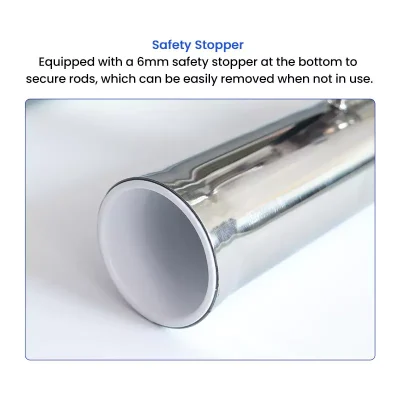

Equipped with a 6mm safety stopper at the bottom to secure rods, which can be easily removed when not in use.

Start order request Contact supplier

Shipping Contact supplier to negotiate shipping details Enjoy On-time Dispatch Guarantee.

Payments Enjoy encrypted and secure payments.

Returns & Refunds Eligible for refunds within 30 days of receiving products.

A Multi Rod Holder stores and secures multiple fishing rods in one compact unit. It keeps rods organized on boats, piers, or shore. It prevents tangles and frees crew to handle lines and tackle. Multi holders vary by tube count, materials, and mounting type. They are common for recreational and commercial fishing operations.

RTI’s model Multi Rod Holder is a 5-tube rod holder built for marine use. It uses 304 or optional 316 stainless steel and PP parts for strength and saltwater corrosion resistance. The holder fits 32mm rails and folds for storage. Each tube has a slotted design to accept spinning reels. A removable 6mm safety stopper at the base secures rods during transit.

This custom OEM option suits ocean boat fishing, rivers, lakes, beaches, ponds, rocks, and streams. With dimensions of 830mm length, 50.8mm diameter, and 257mm width, it weighs just 6.575kg. Choose black or white colors for your needs.

Product Specifications

Product Name	304/316 Stainless Steel Multiple Rod Holder
Model Number	RTI-RH89
Length	830mm.
Diameter	50.8mm
Width	257mm
Height	260mm
Material	304/316 Stainless Steel
Color	Black, White
Weight	6.575KG
Single Package Size	100X50X50 cm
Single Gross Weight	7.500 kg

Advantages of Stainless Steel 5 Fishing Multi Rod Holder

Corrosion-Resistant Stainless Steel:
Made from 304 (standard) or 316 (optional) stainless steel to resist rust in saltwater environments.
Reel-Friendly Slotted Tubes:
Slotted tube openings allow reels to sit naturally, reducing line stress and simplifying rod removal.
Fits 32mm Rail Systems:
Adjustable bracket clamps to 32mm rails for quick installation on most boats.
Five-Rod Capacity with Compact Footprint:
Holds five rods in a single unit while keeping overall width minimal for tight decks.
Foldable & Portable Design:
Folds flat for storage and transport, saving deck space when not in use.
Secure Safety Stopper:
A 6mm bottom stopper locks rods in place and can be removed when not needed.

Stainless Steel 5 Fishing Multi Rod Holder Manufacturing Process

Design & Specification

Engineers create 3D CAD models to define tube layout, mounting structure, and clamp design. OEM details such as logo placement, surface finish, and packaging are confirmed before tooling begins.

Material Preparation

304 or 316 stainless steel and PP parts are sourced and inspected. Each batch is tested for roundness and composition using XRF analyzers to ensure corrosion resistance and durability.

CNC Cutting & Bending

Tubes are precisely cut on CNC machines for smooth, burr-free edges. Hydraulic bending ensures consistent tube angles and alignment, maintaining deviation within ±0.5°.

TIG Welding & Assembly

Tubes and brackets are joined using TIG welding for clean seams and minimal heat distortion. PP liners and safety stoppers are then installed, and each assembly is checked for symmetry and strength.

Surface Treatment & Finishing

All welded parts undergo acid pickling and passivation to enhance saltwater resistance. The surface is polished to a mirror or brushed finish. Powder coating or anodizing is available for OEM color requests.

Quality Inspection

Each holder goes through dimensional and weld strength testing, followed by a 48–72 hour salt spray test depending on the stainless steel grade. Only units that pass all tests proceed to final packing.

Packaging & Shipping

Finished holders are wrapped in protective film and foam, then packed in cartons or pallets for export. Custom labels, color boxes, and barcodes are prepared according to OEM or wholesale specifications.

Q1: What rail size does this holder fit?

A: The clamp adjusts to a 32mm rail. We can modify the clamp for other rail sizes on OEM orders.

Q2: Do the tubes accept spinning reels?

A: Yes. The slotted tube design accepts spinning reels and most baitcasters without extra adapters.

Q3: Is the safety stopper removable?

A: Yes. The 6mm bottom stopper is removable for easier loading and when you don’t need extra retention.

Q4: What is the MOQ for custom or branded orders?

A: MOQ depends on customization. For basic OEM color or logo requests we typically start at 500 pcs. Exact terms depend on print and packaging.

Q5: How is the product shipped for bulk orders?

A: We pack per customer requirements — boxed units on pallets. We can prepare barcodes, hang cards, or custom inner boxes for wholesale shipments.

Q6: Can you supply a sample?

A: Yes. Samples are available. Sample pricing applies and lead time depends on material and any custom finishing.
